Avoid Revise and Resubmit: Fabrication Ready Carpentry Shop Drawings
A carpentry shop drawing is the fabricator’s build contract, not a design rendering. It must show every dimension, joint, material, hardware model, and finish, plus a clear verify-in-field (VIF) status, so the shop can cut and assemble without asking a single follow-up question. If a drafter or client leaves any of that out, the drawing has failed its one job, no matter how polished it looks.
TL;DR:
Shop drawings must include every dimension, joint, hardware, material, finish, and verify-in-field notes to enable error-free fabrication without questions.
Millwork requires detailed, custom sections and full joinery plans tailored to unique conditions, unlike modular cabinetry that relies on standard templates.
Accurate, synchronized cut lists and material schedules are essential, with a designated owner ensuring revisions match throughout the project lifecycle.
Field verification points marked as VIF and explicit scribe allowances reduce on-site errors and prevent costly rework after fabrication.
Coordinating design and drafting within one team streamlines communication, catches conflicts early, and minimizes RFIs that delay project schedules.
Table of Contents
What Goes Into a Complete Shop Drawing Set for Carpentry
A shop drawing exists to translate design intent into something a saw operator or CNC programmer can execute without interpretation. This means every sheet in the set carries specific, non-negotiable content, not just a pretty elevation.
A buildable set for cabinetry or millwork typically includes:
Plans, elevations, and sections at a scale that actually shows construction intent, commonly 1/2 inch = 1 foot for overall plans and enlarged sections at 1 1/2 inch = 1 foot or 3 inch = 1 foot for joint details.
Detail call outs and exploded or isometric views wherever a joint, reveal, or hardware pocket can’t be read from a flat section.
Material, hardware, and finish schedules listing species, sheet goods, edge banding, pulls, hinges, and slides by model number, not by description alone.
A cut list that cross-checks against the drawings, since a missing complete shop drawing set or a mismatched cut list is one of the most common reasons submittals come back as Revise and Resubmit.
A title block, revision log, unit callouts, drafter’s name, and VIF markers on every sheet, not just the cover page.
Dimensioning discipline matters as much as content. Every dimension should have a single source of truth. Overlapping or conflicting dimension strings between the plan and the section are exactly what send a project back for another round of review instead of straight to the shop floor.
Millwork vs. Cabinetry: Which Drawing Style Applies?
Cabinetry is largely modular, casework built from standard box dimensions with predictable joinery, so its drawings can lean on repeatable templates. Millwork is custom architectural woodwork built for one specific space, and its drawings need to carry far more resolution because nothing about the piece repeats down the hall.
That distinction changes what belongs on the sheet:
Cabinetry drawings typically need box dimensions, door and drawer schedules, and standard joinery notes since the construction method rarely varies from unit to unit.
Millwork drawings need enlarged sections and full joinery detail for every unique condition. A curved reception desk or a continuous wall panel run has no “typical” module to fall back on.
Grade and duty level both need to appear on the drawing. ANSI/AWI guidance separates aesthetic grade from structural duty level, and a drawing that states “Custom grade, Duty Level 3” removes an entire category of ambiguity a reviewer would otherwise have to guess at.
Millwork-specific conditions like continuous grain-matched panels, integrated LED lighting channels, and feature trim transitions demand their own detail sheets. These are exactly the elements that get missed when a drafter copies a cabinetry template onto a millwork job.
Knowing which convention applies early saves real time. A client commissioning a fitted reception wall needs a fundamentally different drawing package than one ordering a run of closet cabinets, and Monarch carpenters scopes that distinction before a single line gets drawn.
Who Prepares the Drawings, and How Do They Reach the Shop Floor?
Responsibility for shop drawings typically splits three ways: the fabricator or in-house drafter produces the set, a general contractor’s submittal coordinator logs and routes it, and the architect reviews it for design conformance. Getting that handoff wrong is where projects lose weeks.
A few practical rules keep the workflow clean:
Outsourcing drafting works only with clear deliverables specified up front. Require a named revision protocol, native CAD files, and a sample sheet before committing to a vendor.
PDFs serve review; DXF or native CAM files serve production. Sending a flattened PDF to a CNC operator, or a working CAD file to an architect for markup, both create unnecessary friction.
The bill of materials and the cut list must stay synchronized with the drawing set at every revision. A cut list generated once and never updated after a design change is a guaranteed saw-floor error.
One person owns the drawing file. Multiple editors working off different versions is how conflicting dimensions creep back in after they were already caught.
How the Architect’s Review and Approval Process Works
Shop drawings move through a fairly standard chain: fabricator submits, the general contractor’s coordinator logs and forwards it, and the architect reviews for design conformance before returning one of four responses.
Approved. The drawing matches design intent and can proceed to fabrication as submitted.
Approved as Noted. Minor corrections are marked directly on the drawing; the shop can proceed but must incorporate the noted changes.
Revise and Resubmit. Something material is missing, unclear, or wrong, and the fabricator must correct and send the set through review again before cutting.
Rejected. The submission doesn’t meet the design intent or contract requirements and needs a substantial rework, not a markup.
It helps to know what that approval stamp actually means legally. Under standard AIA A201 contract language, an architect’s review confirms conformance with design intent only. It does not transfer responsibility for dimensional accuracy or fabrication errors away from the submitting contractor. Presenting a drawing with clean dimension strings, a complete schedule, and clearly clouded revisions is the single best way to earn an Approved as Noted instead of a Revise and Resubmit.
Field Verification and Coordinating With Other Trades
CNC output is only as good as the field dimensions it’s built against, and no set of construction documents perfectly predicts a real wall, floor, or ceiling. That gap is exactly what VIF notation exists to manage.
Mark any dimension the shop cannot fully trust from the drawings alone as VIF, and assign one person the responsibility of confirming it on site before cutting starts. Carpenters trained through programs like NCCER’s carpentry curriculum learn to treat written field dimensions as more reliable than scaling off a drawing, and that same discipline belongs in every shop drawing note.
Flag VIF dimensions explicitly, not with a generic “field verify all” disclaimer that tells the shop nothing.
Build scribe allowance into panel and end-panel dimensions so small field variance doesn’t stall installation.
Document any MEP or structural interface, outlet locations, sprinkler heads, ductwork, on the drawing itself so the millwork isn’t designed in isolation.
If a field measurement contradicts the construction documents, flag the discrepancy, notify the design team, and hold fabrication on that specific component only.
Pro Tip: A disciplined VIF practice paired with explicit scribe allowances is what actually bridges CNC-perfect geometry and an imperfect job site. Skipping it is how a flawless drawing turns into a field change order.
Common Fabrication Mistakes That Trigger Costly Rework
Most rework doesn’t come from bad design. It comes from drafting shortcuts that seemed harmless until the shop hit them.
Conflicting dimensions between a plan and its enlarged section, usually caused by editing one view and forgetting the other.
Underspecified joinery, where a corner or edge condition is drawn but never actually detailed.
Missing hardware model numbers, forcing the shop to guess a hinge or slide spec instead of ordering the correct part.
Detail scales too small to read, which push fabricators to interpret rather than measure.
Catching these before cutting starts is a matter of process discipline: the drafter checks dimension consistency, the fabrication lead reconciles the cut list against the drawing set, and the project manager confirms every hardware line item has a model number before the file leaves the office. These are the same failure modes that turn a one-day job into a week of rework.
The Pre-Submittal Checklist Before You Send It to the Architect
Running through a short checklist before export catches most of what causes a Revise and Resubmit.
Confirm the revision log matches the current drawing state, and every change since the last submission is marked with a clear revision cloud.
Flag every VIF item and assign a name and date for on-site verification.
Cross-check hardware and material schedules against the cut list line by line.
Export a clean PDF for architect review and a separate DXF or native CAM file for the shop.
Attach a sample assembly photo or mock-up image for any non-standard joint or detail.
Missing a required component such as a hardware schedule or cut list is one of the most common reasons a submittal bounces back instead of moving straight to fabrication. Five minutes on this checklist routinely saves a full review cycle, which on a commercial millwork package can mean a week or more of schedule float.

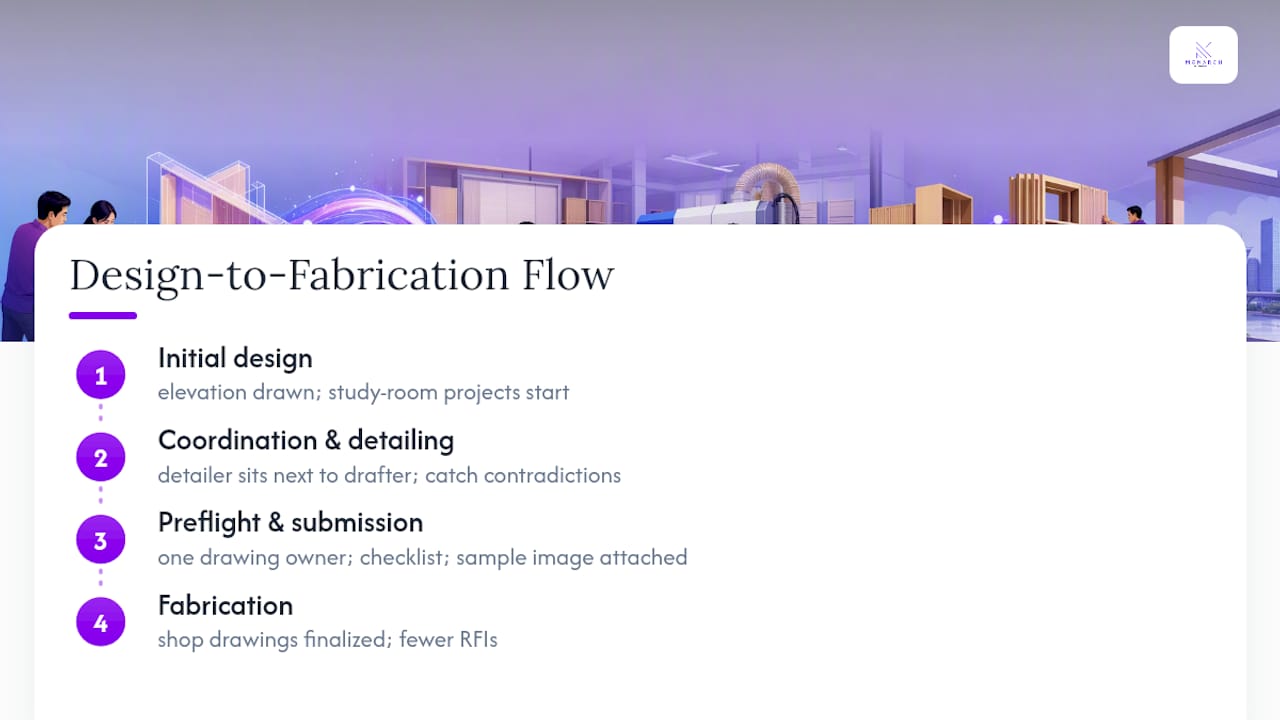

Why Monarch’s Design-Build Process Cuts Down on RFIs
Monarch carpenters keeps design and drafting under one roof, which matters more than it sounds. When the person detailing a joint sits next to the person who drew the elevation, contradictions get caught before they ever reach a reviewer instead of after a Revise and Resubmit lands. Our study room carpentry projects show how that coordination plays out in practice, from initial design through fabrication.
A few habits from our workflow translate directly to any team producing shop drawings: assign one drawing owner per project, attach a preflight checklist to every submission, and include a sample assembly image whenever a joint or detail departs from standard practice.
Get Fabrication-Ready Shop Drawings Without the Guesswork
Some design-build firms keep design and fabrication under one roof, allowing in-house teams to produce coordinated shop drawings, manage the submittal process, and handle field verification under one contract, helping clients receive consistent design quality at a reasonable cost.
Clients often appreciate elegant, tailored carpentry solutions that remain mindful of budget constraints. If you’re commissioning custom millwork or cabinetry, ask us for sample drawings, a revision history from a comparable project, and our preflight checklist on your first call. It’s the fastest way to see how we translate a design concept into something a shop can build without a single guess. You can also see how this plays out project to project in our breakdown of carpentry works costs or by browsing examples like our kids’ room carpentry designs. Reach out through Monarch Carpentry Design Studio to start scoping your project.
Sources
FAQ
What do shop drawings mean in construction?
A shop drawing is a detailed drawing produced by a contractor, fabricator, or supplier that shows exactly how a specific component will be built and installed, distinct from the architect’s design drawings that establish overall intent.
How much do shop drawings cost?
Cost depends heavily on the level of detail required, AWI grade, joinery complexity, and whether CNC-ready files are needed, and it typically scales with the project’s overall carpentry scope rather than existing as a flat fee; our cost breakdown guide walks through the main drivers.
What should be included in a shop drawing?
A complete set needs plans, elevations, sections, construction details, material and hardware schedules, a cut list, and a title block with a revision log, since missing any of these commonly triggers a Revise and Resubmit response.
What are the requirements for shop drawings?
Requirements vary by project, but a fabrication-ready drawing must state every dimension, joinery method, material, hardware model, and finish, plus VIF status on any field-dependent dimension, so the shop never has to guess.
When do I need custom millwork drawings instead of standard cabinetry drawings?
Custom millwork, like continuous panel runs or integrated lighting, needs enlarged sections and full joinery detail for every unique condition, while modular cabinetry can rely on repeatable box and hardware schedules; our guide on choosing carpentry vs. ready-made furniture breaks down when each approach makes sense.
